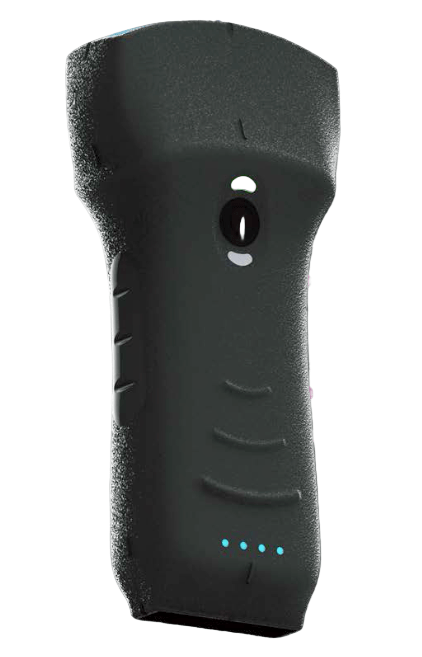

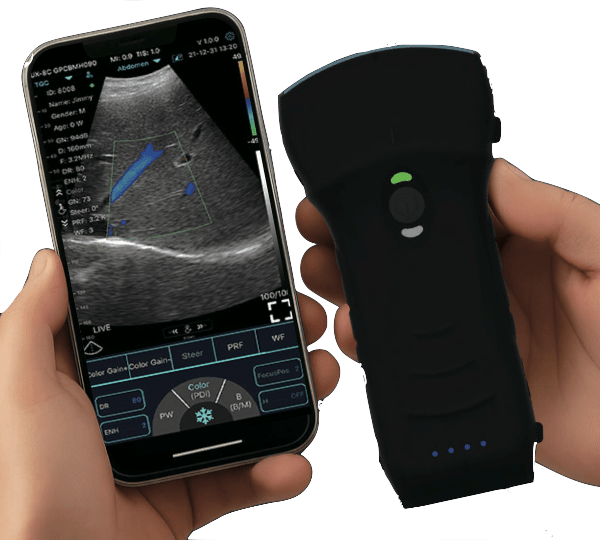

C10TX-PRO Dual Head Convex & Linear Wireless Hand-Held Ultrasound

The C10TX-Pro Dual Head Convex & Linear + Cardiac Wireless Hand-Held Ultrasound is an ideal tool for healthcare professionals seeking advanced imaging technology. Equipped with dual heads, Wi-Fi connectivity, and compatibility with smartphones, it offers both linear and convex probes to cover diverse diagnostic needs. Enhance your workflow with this state-of-the-art portable ultrasound system.

C10TX-Pro Dual Head B&W+Colour Doppler Hand Held Ultrasound Probe

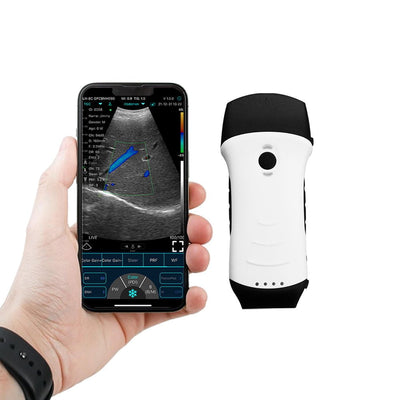

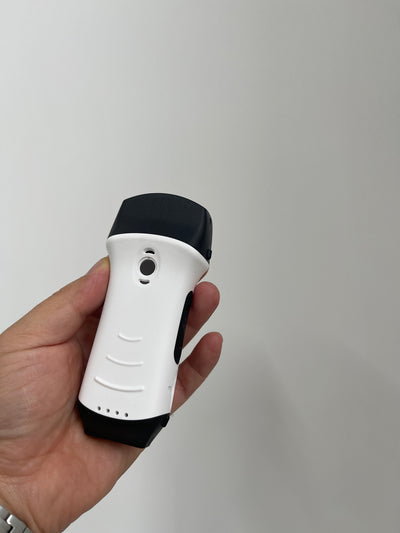

Experience the convenience and versatility of the C10TX-Pro Dual Head Convex & Linear Wireless Hand Held Ultrasound Machine by InterAktiv-Scan. Utilising both linear array and convex phased array ultrasound heads, this portable machine offers both black and white as well as colour doppler applications. Use with USB or wireless connection for optimal use.

Combining Linear array with a Convex ,Phased array Ultrasound heads into one portable hand held ultrasound machine offering B&W and Colour Doppler applications.

Light weight, fast boot time compatible with your own iOS, Android or Windows devices creates a go anywhere diagnostic tool and can be connected using either USB cables or Wi-Fi connection. Store patient data, record measurement, share files and images. Can be used across multiple devices with the ease of App software, no subscriptions or licence fees.Supports charging while working.

Applications: Linear array mode : MSK( Musculoskeletal), Orthopaedics, Vascular, Paediatrics, Sports medicine, anaesthesia , injection , Puncture , nerves, Point of care, Womens Health, Bladder Volume, Physiotherapy, Ultrasound guided procedures, Veterinary and among other medical fields.

Presets: Abdomen, Gynaecology, Obstetric, Cardiac, Urology, Kidney, Lung, Thyroid, Small parts, Paediatric, Vascular, Carotid, Breast, MSK, Nerve

 C10TX-Pro Dual Head Portable Ultrasound Specification:

• Scanning mode: Electronic array
• Display mode: B, B+M, B+B, colour, PW, PDI, B+Colour+PW
• B+Colour+PW Triplex display ( Linear only)
• Convex R60 array mode: 3.2/5.0mhz, Scan angle 45 Deg Scan Depth: 90-305mm
• Linear L34 array mode: 7.5/10.0mhz, Scan depth: 20-100mm
• Cardiac mode: 2.5/5.0mhz, Scan Angle 80 Deg, Scan Depth: 90-160mm
• 192 Element, 64 Channel
• Frame Rate: 24 fps.
• Grey Scale Image: 256 level
• Gain: 40-110dB
• 2 x builtin Batteries: working time: >4 hours, Standby >72 Hours- support charging while working.
• IP68 level waterproof case.
• Recharge Time: 3~4 hours (Wireless or Type-C USB)
• Dimension: 125(h)x59(w)x31(d) mm
• Weight: 193g
• Wifi type: 802.11g/20MHz/5G/1450Mbps
• Image Storage: JPeg,MP4, DICOM
• Cine loop: Auto/100, 200, 500 & 1000 play back frames
• System Compatibility: Apple iOS ( Vs 11.0+), Android 14 or later & Windows 10
• Device connection: Wi-Fi or USB-c
• Internal 5G Wi-Fi network ( no external network required)
• USB-C connection: Android & Windows 10
• 360 degree waterproof, can be used directly underwater.

Measure:

• B-mode: Length, Length Ratio, Distance, Area/Circumference, Angle, Trace, Area Ratio, GA( CRL,BPD,GS,FL,HC,AC) EFW( BPD,FL),
• Dual Screen: Bladder Volume
• B+M mode: Heart Rate, Time, Distance, LVID ( LVIDd, LIVIDs,EF,SV)
• B+PW mode: Heart rate(2), S/D, VTI, Distance, Time
• Auto Blood Flow Measurement: PS,ED,TAMAX,TAMEAN,PI,RI,S/D,DIAM,FL
• Dual Screen: Analyse and compare imaging in any 2 modes
• Annote: markers and notes on image
• Measure Magnify: measure boundary of small target more accurately.

Interface Display:

• Adjustable B Gain
• Adjustable Colour Gain
• Depth
• 8 x TGC
• Adjustable Depth
• ENH ( Edge enhancement)
• Adjustable Dynamic Range
• Adjustable Frequency
• Mid-Line
• Body Marks
• Dual Screen Function
• Measure Zoom function
• Auto Blood Vessel measurement function( Linear mode only)
• Full screen button
• Annotes

How does it work: The ultra sound machine connects via Wi-Fi to your existing device, which can be iPhone, IPad, Android phone or tablet or a PC running WIN10 operating system. The Ultra sound machine is discovered in the Wi-Fi setting page of your device and connects once selected. Open the software App and the unit is ready to scan. If using an Android devise the USB cable can also be used to connect the probe.

Available connection options:

• Android Devices - USB Type C or Wi-Fi connection
• iOS - Wi-fi connection only
• Windows - USB or WiFi connection

Functions: Many functions found on larger ultrasound system can be found on the Wireless US such as: adjusting gain, dynamic range, focus position, depth, colour mode & sensitivity. The linear probes offer steer function in colour mode. There is also a biopsy mode which applies an adjustable guiding line for needle angle guide. On screen measurements can be done using the calliper setting were anchoring or moving measurement cursors with your finger or a stylus.

Like all ultrasounds, you can record patient data and save individual images to your devices memory or photo library as well as cine loop video

 Standard Configuration:

• Dual Head Probe
• Operating Instructions
• Desk Top Wireless Charger
• Wall Charge + Cable
• Type-C USB cable
• Carry case
