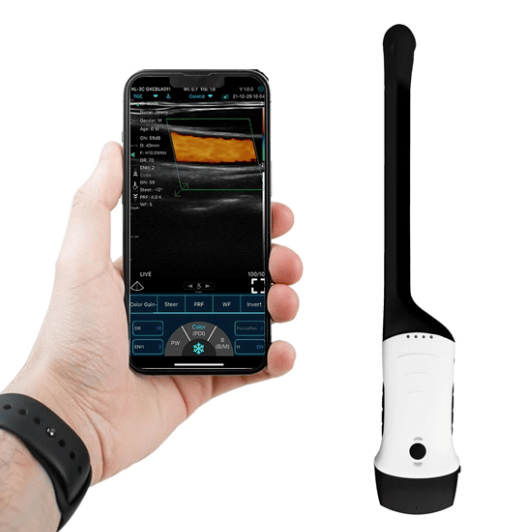

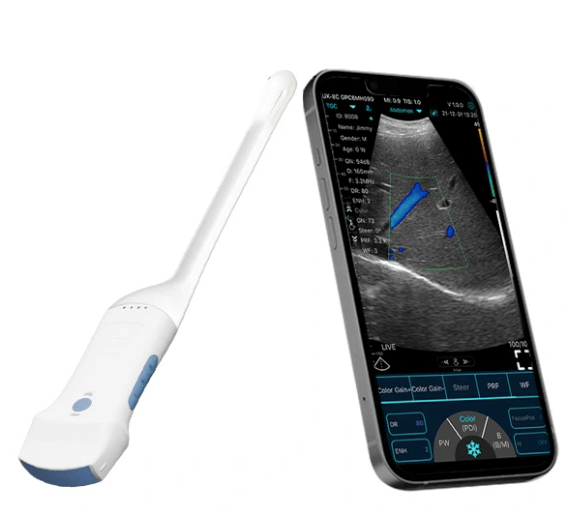

C10RC Dual-probes Multipurpose Ultrasound Convex + Endocavity +Cardiac Probe

C10RC Dual-probes Multipurpose Ultrasound Convex + Endocavity +Cardiac Probe

The C10RC features dual probe technology combining endocavity and convex transducers in a single system. The endocavity probe excels in obstetric and gynaecological applications, delivering detailed visualisation of the uterus, bladder, fallopian tubes, cervix and ovaries for pregnancy confirmation and reproductive tract assessment. The convex probe provides multi-angle abdominal imaging, enabling comprehensive evaluation of abdominal and urinary organs with enhanced diagnostic accuracy. This versatile configuration makes the C10RC an essential tool for obstetric, gynaecological and general abdominal ultrasound examinations.

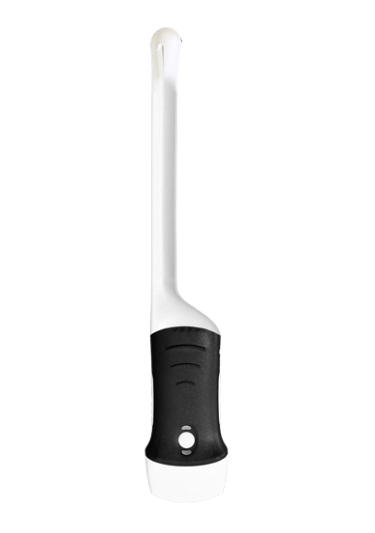

C10RC Dual Head Endocavity and Convex Hand Held Ultrasound Probe

Light weight, fast boot time compatible with iOS and Android devices creates a go anywhere diagnostic tool. Store patient data, record measurement, share files and images. Can be used across multiple devices with the ease of App software, no subscription or licence fees.

How does it work: The probe connects via Wi-Fi to your chosen device, which can be iPhone, Ipad, Android phone or tablet or a PC running WIN10-11 operating system. The Ultrasound probe is discovered in the Wi-Fi setting page of your device and connects once selected. Open the software App and the unit is ready to scan. If using an Android devise the USB cable can also be used to connect the probe.

Functions:Many functions found on larger real time ultrasound system can be found on the Wireless US such as: adjusting gain, dynamic range, focus position, depth, colour mode & sensitivity. The linear probes offer steer function in colour mode. There is also a biopsy mode which applies an adjustable guiding line for needle angle guide. On screen measurements can be done using the calliper setting were anchoring or moving measurement cursors with your finger or a stylus.

Like all ultrasounds, you can record patient data and save individual images to your devices memory or photo library as well as cine loop video

C10RC Hand Held Convex & Endocavity Ultrasound Probe details:

Scanning mode: Electronic array
Display mode: B, B+B, B+M, colour, PW/CW, PDI, B+Colour+PW
Frequency:
- Convex probe 3.2/5Mhz
- Endocavity Probe 6.5/8Mhz
- Cardiac : 2.5/5Mhz
Scan Depth:
- Convex: 90-160-220-305mm
- Endocavity: 20-40-60-100mm
- Cardiac: 90-120-140-160mm
128 Element, 32 channel
Frame rate: 18~24 f/s
Battery working time: 4 hr working, 72hr standby
Rechange Time: 2~3 hrs via USB cable or Wifi Charger
Dimension: 310×54×30mm
Weight: 251g
Wifi type: 2.4G/5G or USB cable connections ( Android only)
Working system: Apple iOS ( Vs 8.0+), Android & Windows 10-11

Presets: Abdomen, Gynecology, Obstetric, Cardiac, Urology, Kidney, Lung, User1, User2

Measurement:

- B: Length, Area/Circumference, Angle,Trace,Distance,GA(CRL,BPD,GS,FL,HC,AC), EFW(BPD,FL)
- B+M: Heart Rate, Time, Distance, LVID( LVIDd, LVIDs, EF, SV)
- B+PW:Velocity, Heart Rate(2), S/D, Depth
- Automatic Vessel Flow Measure：PS, ED, TAMAX, TAMEAN, PI, RI, S/D, Diam, Flow

Available connection options:

Android Devices - USB Type C or Wi-Fi connection
iOS - Wi-fi connection only
Windows - USB or WiFi connection

ARTG: 407353

APP Interface Display:

Adjustable Gain
8 x TGC
Adjustable Depth
ENH ( Edge enhancement)
Mode: B,B/M
Adjustable Dynamic range
Adjustable Frequency
Centreline
Body Marks
Dual Screen Function
Measure Zoom function
Full screen button
