C10LN B&W Superfical Ultrasound Linear Probe

Contact Us

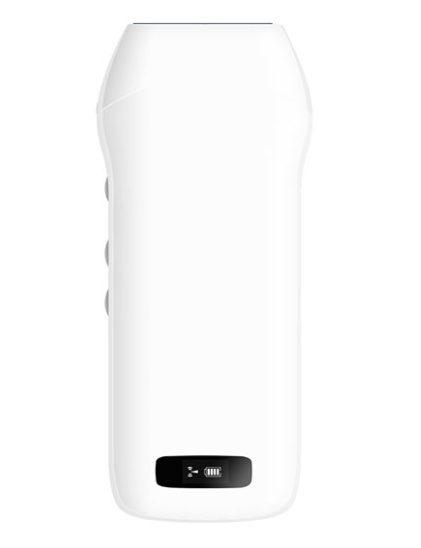

The C10LN B&W Superficial Ultrasound Linear Probe offers exceptional superficial scanning capabilities with its high frequency range of 7.5-10Mhz. Its Wi-Fi functionality allows for efficient and seamless data transfer, making it a valuable tool for medical professionals. Experience the benefits of accurate and detailed imaging with the C10LN.

C10LN B&W Superfical Ultrasound Linear Probe


The C10LN B&W Superficial Ultrasound Linear Probe offers a light weight and convenient way to conduct initial diagnostic exams. With wireless technology and changeable frequencies between 7.5Mhz and 10Mhz, this probe provides broader application scan depths for precise results.

Download the Wireless US app to iPhone, iPad or smart phone or PC for a convenient, compact, transportable Ultrasound that can be applied to many applications:

  • MSK
  • Small Parts

C10LN B&W Superfical Ultrasound Linear Probe details:

  • 8 TGC
  • Adjustable Dynamic range
  • Switchable Speckle reduction
  • Frequency – now selectable between 7.5 & 10Mhz
  • Button controls on the probe reducing physical interaction with tablet.

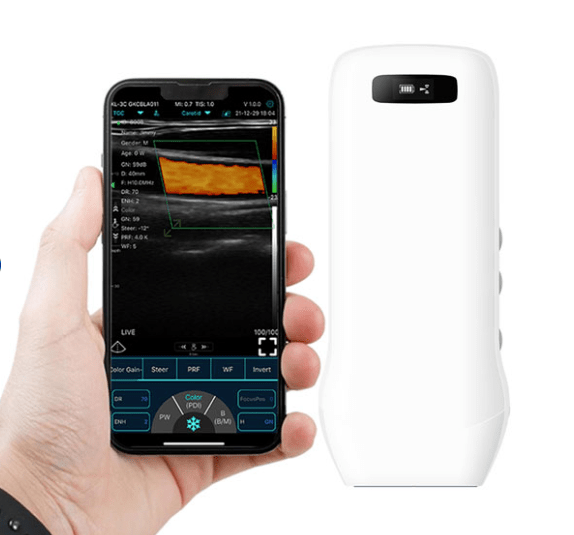

How does it work:  The probe connects via Wi-Fi to your own device, which can be iPhone, Ipad, Android phone or tablet or a PC running WIN10 operating system. The Ultrasound probe is discovered in the Wi-Fi setting page of your device and connects once selected. Open the software App and the unit is ready to scan.

Functions:  Many functions found on larger real time ultrasound system can be found on the Wireless US such as: adjusting gain, dynamic range, focus position, depth, colour mode & sensitivity. The linear probes offer steer function in colour mode. There is also a biopsy mode which applies an adjustable guiding line for needle angle guide. On screen measurements can be done using the calliper setting were anchoring or moving measurement cursors with your finger or a stylus.

Like all ultrasounds, you can record patient data and save individual images to your devices memory or photo library as well as cine loop video

  Please note this item is for Pre-order, please allow 10-14 days shipping

C10LN B&W Superfical Ultrasound Linear Probe Specifications:

  • Workable with Tablet or Smart Phone
  • Built-in and replaceable battery
  • Advanced digital imaging technology, clear image
  • High cost-effective
  • Wireless connectivity, easy to operate
  • Small and light , easy to carry
  • Applicable in emergency, clinic, outdoor and vet inspection
  • Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing


  • Display: Android or iOS, windows10
  • Frequency: 7.5M-10Mhz switchable
  • Scanning Mode: Linear array- 128 element
  • Depth: adjustable 40-100mm
  • Gray Scale: 256 levels
  • Display Mode: B Mode, BM Mode

Interface Display:

  • Adjustable Gain
  • 8 x TGC
  • Adjustable Depth
  • ENH ( Edge enhancement)
  • Mode: B,B/M
  • Adjustable Dynamic range
  • Adjustable Frequency
  • Centreline
  • Body Marks
  • Dual Screen Function
  • Measure Zoom function
  • Full screen button
  • Measurement: Length, Area/Circumference, GA(CRL,BPD,GS,FL,HC,AC), EFW( BPD,FL)

Measurements: Manual

  • Footprint: 40mm
  • Weight: 300 gram
  • Battery last: 4 hours



 ARTG: 407353
