KAIXIN
KX5200V

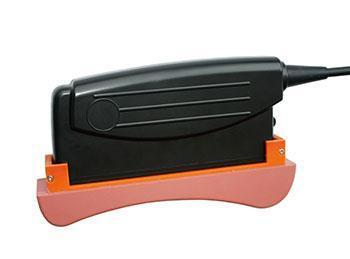

KX5200V VETERINARY ULTRASOUND
Pregnancy & Fertility Testing Bovine & Equine Animal Ultrasound
.

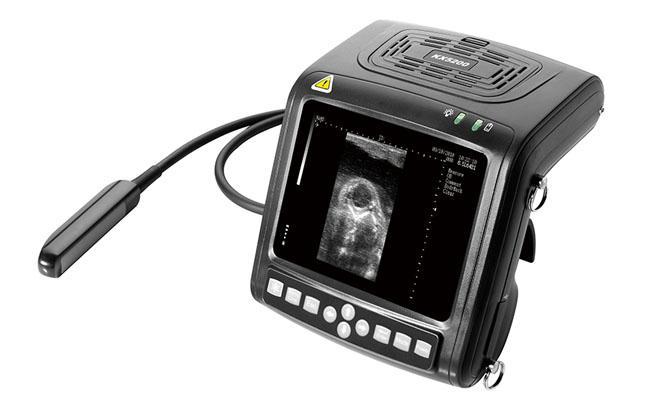

Veterinary Hand Held Ultrasound Scanner

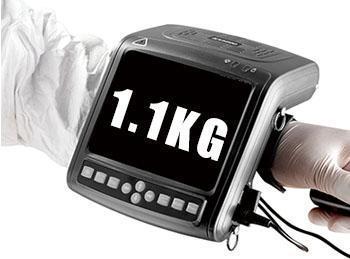

KX5200V is a full digital B mode ultrasound scanner with some of the best features and functions for veterinary ultrasound scanning. It gives an excellent image quality with high resolution and high penetration. The rectal probe has a 70mm producing wide images. It is lightweight and can conveniently be worn on the wrist or hung on the neck for hands free use. The KX5200V has been listed as one of the top 3 veterinary ultrasound.
Designed for many veterinary examination:
- Bovine
- Equine
- Ovine
- Canine
- Feline
- Goat
- Llama
Features
- Digital image technology
- Ingenious outline and multifunction
- Different probes can be used optionally
- Very light for using

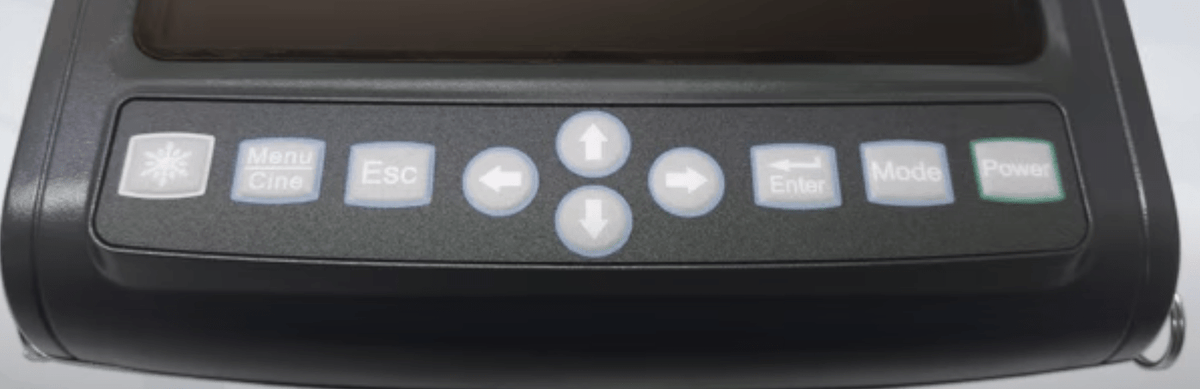

- Ergonomic keyboard
- USB disk function makes the images easily transferred into computer

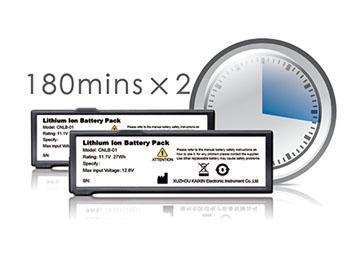

- Rechargeable battery lasts about 2 hours
Specifications
- Technology: All-digital imaging technology, full digital beam forming
- Scanning methods: electronic convex, electronic linear, electronic micro-convex
- Scanning technology: Real-time dynamic imaging, harmonic imaging
- Probes: Multi-frequency probes

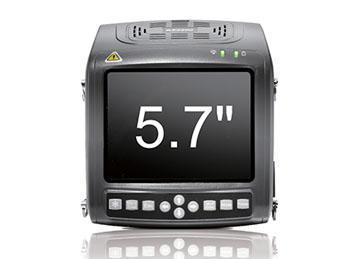

- Monitor: 5.7" high resolution non-interlaced LCD display high brightness and contrast for outdoor use.
- Gray scale of the ultrasound machine: 256 levels.
- Display modes: B, B/B, B/M, M, or 4B
- Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s, and 8s
- Magnification: *0.8, *1.0, *1.2, *1.5, *1.6, *2.0, *2.4, and *3.0
- Focusing methods: Single-point, multi-stage transmitting, dynamic focusing
- CINE loop: 256-frame
- Zoom: Intelligent local zoom in real-time and frozen mode
- Image storage and transfer: Built-in 100-frame image storage, USB Image transfer, Ultrasound working station
- Image Processing: Depth enhancement/pan function, Left/right, positive/negative, vertical, horizontal flip and B/W conversion, angle change, Image freeze/unfreeze, gamma correction, EDGE enhancement for image after-processing, gray transformation, gray rejection etc, frame correlation function, adjustment and display of near field, far field, total gain and dynamic range, Pre-processing: IP selection, dynamic range, EDGE enhancement, smooth, frame averaging, scanning angle selection, line density selection etc
- Measurements:
- B mode: Distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile etc.
- M mode: Distance, time, velocity, heart rate etc.
- General software packages for Abdomen, OB/GYN, Small parts, Urology, Cardiology etc.
- Obstetric package including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 4 veterinary body marks
- Report: Obstetric report
- Automatic calculation of back fat and lean percentage of swine.
- Documentation: Full screen documentation, hospital name, Patient name, date/time
- Power Supply: AC 100-240V~, 50-60Hz
- Power consumption: ≤ 40VA

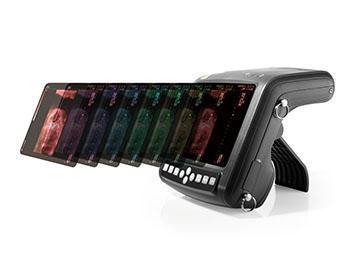

- Others: 8 kinds Pseudo-color, Energy-saving, PAL-NTSC switchable
Standard Configuration
- KX5200V main machine
- 7Mhz high resolution non-interlaced LCD display
- 1 probe connector
- 256-frame CINE loop
- 100-frame image storage
- USB disk port
- Measurement & calculation software packages
- 6.5MHz linear veterinary rectal probe (for veterinary endorectal)
- 4 veterinary body marks
Optional Probes
- 5MHz convex abdomen probe (for veterinary abdomen, GYN, OB, Urology)
- 4.0MHz convex rectal probe (for veterinary endorectal)
- 4.0MHz convex rectal probe with handle (for veterinary endorectal)
- 5.0MHz micro-convex cardio probe (for veterinary cardio)
- 6.5MHz convex transvaginal probe (for veterinary endovaginal)
- 7.5MHz high frequency linear probe (for veterinary small parts, orthopedics, musculoskeletal)
Optional
- Belt
- Biopsy needle-guided brackets
- Ultrasound working station trolley
- USB software with connection cable
- Ultrasound goggles
- Rechargeable power supply
- Rechargeable power supply in car
