KAIXIN

MSU3

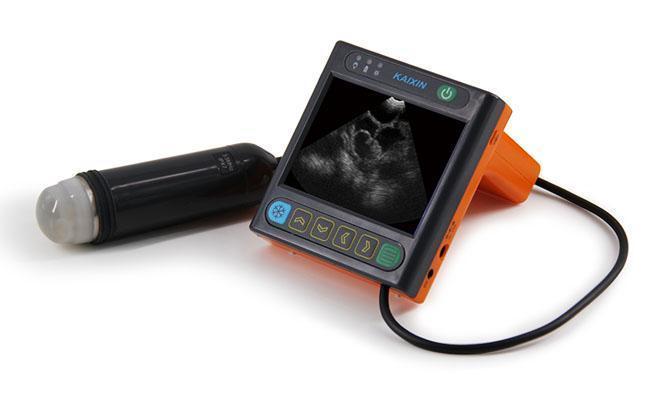

MSU3 Digital Mechanical Sector Ultrasound

Cow, Sheep, Cat/Dog Pregnancy Test Machine Veterinary Imaging Doppler Ultrasound

The MSU3 is the perfect entry level ultrasound for abdominal scan pregnancy testing. Compact, lightweight design with 5"high-resolution colour LCD making the MSU3 portable and suitable for outdoor use.

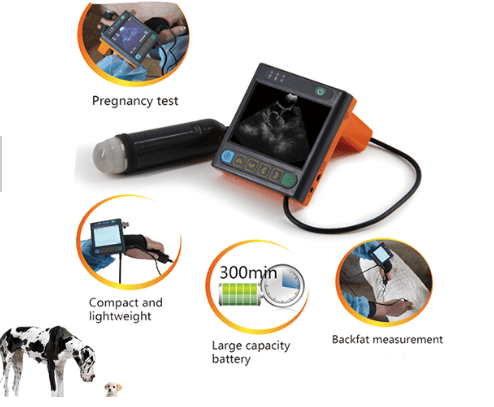

Features:

  • Pregnancy testing
  • Backfat measurement
  • Large capacity battery, 300min
  • Compact and Lightweight, under 650g



Technical Specifications:

  • Using the latest cortex-m4 embedded control system + miniaturized exclusive ultrasound technology hardware system; has a triple function of A scan, B scan, and ear tag scan, the perfect solution to the various needs of users;
  • 5"high-resolution colour LCD, small size, lightweight and portable, suitable for outdoor use;
  • Gray:256
  • Display mode: B, 2B, A mode
  • B mode and A mode gain range: 27 ~ 90dB
  • Near field gain: -31 ~ 0dB;
  • Far Field Gain: 0 ~ 31dB;
  • Dynamic range:27~90dB
  • 3 kinds of depth range, 126,163,200, the maximum display depth of 200mm;
  • Compression curve adjustment: 4 kinds, from 0 to 3;
  • Frequency: 2.5Mhz & 3.5MHz
  • Frame correlation: 0 ~ 5,6 kinds;
  • Pseudo-colour function: 0 ~ 7,8 species (including black and white);
  • Able to measure backfat thickness, muscle thickness, and lean percentage;
  • Image Storage: image or measurement data stored in the U disk;
  • Scale of the image display: 3 kinds, "0" is not displayed ruler, "1" is displayed 10mm pitch of dot scale, "2" is displayed vertical and horizontal pitch of 10mm dot scale;
  • Supports 3 kinds ear tag format: EM4305, EM4100, T5557;
  • Unique ear tag scanning function: ear tag scanning within a set time (10-30 seconds) to complete the ear tag scanning;
  • B scan and A scan measured data can be stored in an Excel table, user-friendly data management, processing all kinds of information;
  • Unique menu display settings: Menu disappears automatically at a set time, user-friendly observation image;
  • Screen saver function;
  • System settings probe guard time, automatically freeze, protect probe;
  • Dual power supply. Power: 100-240V ~ ± 10% 1.2-0.6A Frequency: 50-60Hz ± 1Hz;
  • Large Battery capacity (2600mAh) lithium battery can support more than 300 minutes of work;
  • Net Weight: 620g;
  • Main unit size: 90×98×25mm (length x width x height)



 Standard Configuration:

  • Main unit: 1 pc
  • 5MHz mechanical sector probe: 1 pc
  • Power adapter: 1 pc
  • Internal battery : 1pc
  • Power line: 1 pc
  • Shutter release line: 1 pc
  • Instrument backpack: 1 pc
  • OTG U disk: 1 pc
