WB-2

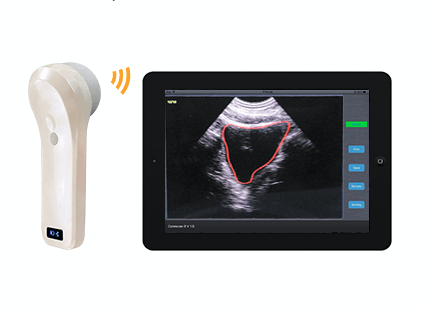

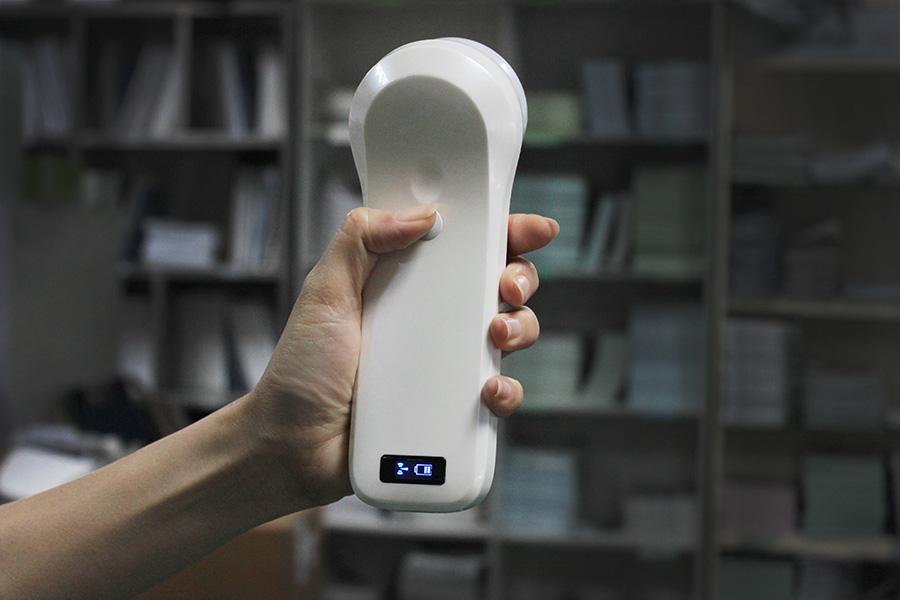

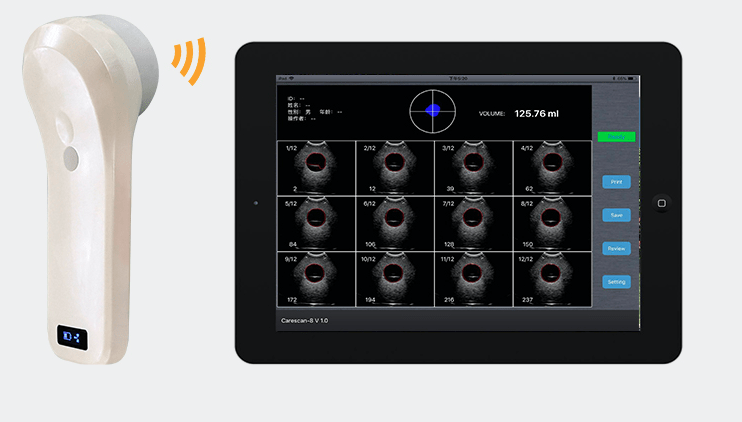

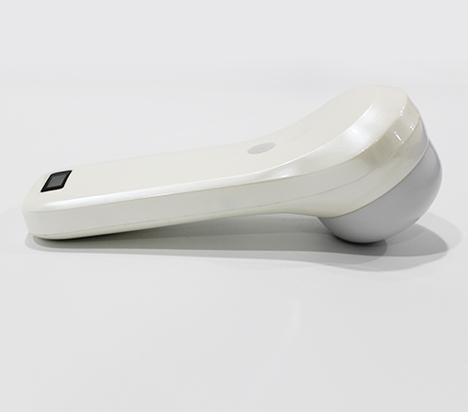

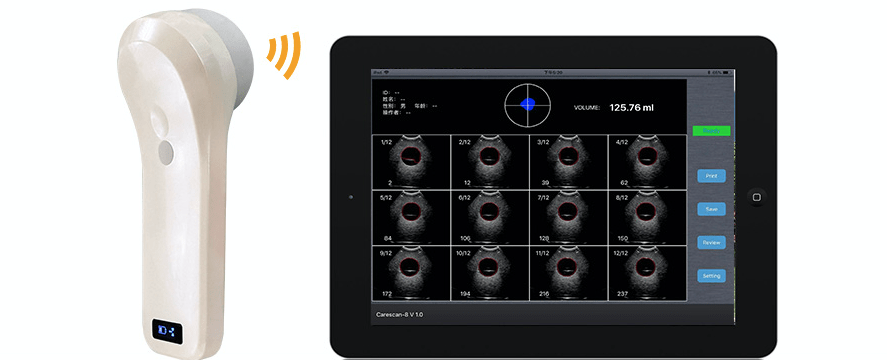

InterAktiv-Scan WiFi Bladder Scanner

InterAktiv-Scan WiFi Bladder Scanner

The InterAktiv-Scan Bladders Scanner is a real-time handheld noninvasive device with 4D Ultrasound technology which easily differentiates between the bladder and the surrounding structures. It accurately measures the bladder and residual volumes. Ideal for men, women and paediatric patients. Excellent for training and illustrating pelvic floor exercises. Suitable for hospitals, community services and private clinics.

Wirelessly connecting to your iPad make the InterAktiv-Scan compact, easy to use and set up while using your current technology to store and manage the patients scan data.

Application: Urology, Obstetrics & Gynaecology, Rehabilitation, ICU,Health centres, General Surgery, Rehabilitation, ED

     ARTG: 278643

  • One button controls the scanner start and stop.
  • No sonographer skills needed.
  • Fully automatic multi-plane scans from one position on the body.
  • Auto location and auto tracking of the bladder in real-time.
  • Post void residual calculation.
  • Only one probe, convenient to carry
  • Wireless connection between iPad and Scanner
  • 4D array scan,  very clear image
  • High accurate (5% inaccuracies)
  • High speed scanning process (2sec)
  • Without distortion of mechanical scanning
  • More advanced algorithm, more powerful bladder wall recognition technology (High recognition rate for the bladder wall with air), more accurate contour technology, higher accuracy of  the probe makes scanning results more accurate.
  • New algorithm, the measurement results are not subject to the bladder shape and size.
  • No need to select Gender, Age group
  • No need to consider special cases such as the effect of hysterectomy on the measurement results. Good compatibility for different bladders, no substantial error when measuring small volume or special shape bladders, easier to operate and use.
  • High precision rotary encoder, precise positioning, never need to calibration.
  • Waterproof probe

bladder scanner for iPad

Specifications:

  • Scan mode: array probe, 4D scan;
  • Supporting system: Apple iOS- iPad (not iPhone due to screen size)
  • Measuring range: 10ml ~ 2000ml;
  • Automatic measurement inaccuracies: <5%;
  • Scan and process<2 seconds;
  • Scanned image display frame: 10 frames / seconds;
  • Patient Data Storage: by tablet storage capacity
  • Printing: external wireless thermal printer( Bluetooth)
  • Battery: Built-in battery, up to 4 Hour usage time.
  • Power: Wireless charge or by USB cable charge;
  • Dimension: 180mm (length) × 60mm (width) × 60mm (thickness);
  • Weight: 420g.

Mobile Trolley- optional

  • Lockable iPad housing with integrated charging
  • Secure probe holder
  • Storage basket 25 x 13 x 14mm(D)
  • 75mm castors, 2 x locking
  • Light weight aluminium construction
  • Easily cleaned.
  • 30x38mm tray with integrated handle
  • 126mm overall height
  • 50 x50mm base area for stability.
