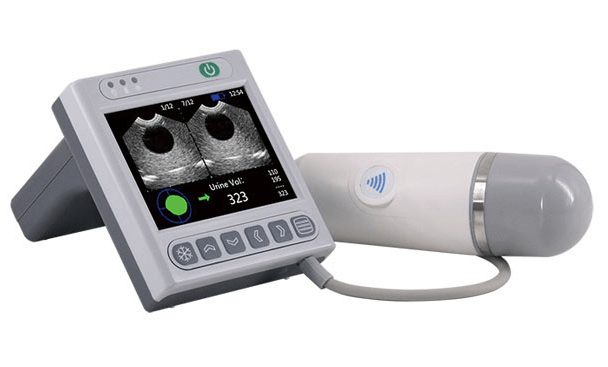

BVT02 Bladder Scanner

BVT02 Bladder Scanner is a 3D ultrasound medical device to measure quickly and accurately the bladder volume and post void residual volume.

• Diagnose urinary retention and evaluate many common urological conditions.
• Prevent unnecessary catheterisation.
• Reduce rates of urinary tract infection.
• Monitor post-operative recovery.
• Help caregivers manage and treat incontinence.
• Reduce costs and save staff time

 Note: This item is pre-order only, delivery is approx 14 days.

Application

• Home health
• Urology
• Obstetrics-gynaecology
• Geriatrics
• Paediatrics
• Rehabilitation
• Surgical
• Operation room
• Recovery room
• Emergency
• Intensive care
• Extended care

Specifications:

• Probe: 2.5Mhz,
• 5" Colour LCD Screen,
• Scan Time < 4s,
• Volume Calculation reference: 12 plans @ 15 ⁰ intervals,
• Urinary volume rendering resolution: 1ml,
• Measurement Range: 20ml-999ml,
• Accuracy: Urinary volume rendering resolution: 1ml
  • Urinary volume within 20-99ml +/- 15ml,
  • Urinary volume with 100-999ml +/- 15%,
• Patient Type: Adult, Child, Obesity
• Adjustable contrast
• Up to 5Hrs working time.
• Dimensions: 90(L) x 140(W) x 85(H)cm
• Unit Weight: 750g

 Standard Configuration:

• Main unit,

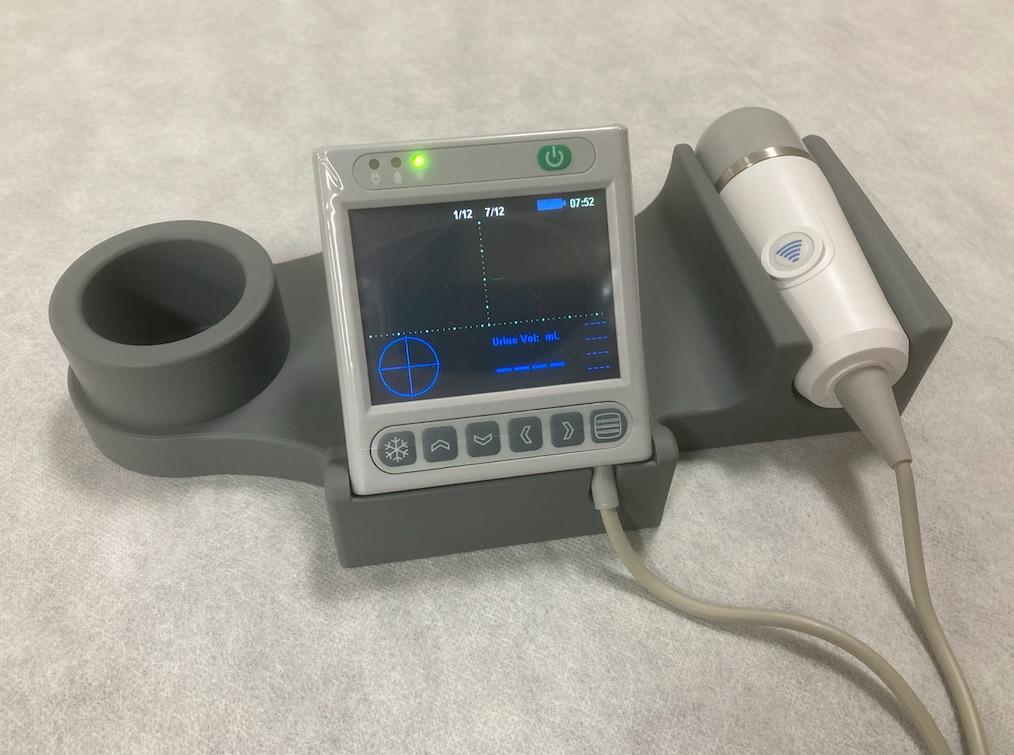

• Moulded desktop cradle to hold unit an probe securely.
• 5Mhz, 3D probe,
• Power adapter,
• Internal Battery,
• Aluminium carry case. 33xm(L) x 22cm(W) x 25cm ( H)

Weight: Overall including carry case 4.0kg

Options:

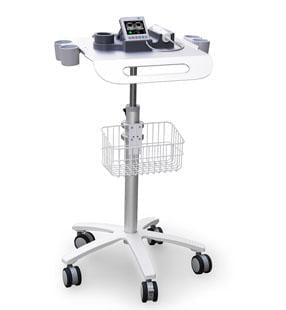

• Mobile trolley
